How efficient can a heat engine actually be? Every heat engine converts some thermal energy into useful mechanical work, but no heat engine can convert all the heat it receives into work. The Carnot cycle provides an important theoretical limit on how efficient a heat engine can be.
The Carnot cycle is an idealized thermodynamic cycle consisting of four reversible processes. It operates between a high-temperature heat source and a low-temperature heat sink. Its efficiency depends only on the temperatures of these two reservoirs.
The Carnot cycle is therefore one of the most important ideas in thermodynamics. It helps explain why real engines have efficiency limits and provides a benchmark against which practical heat engines can be compared.

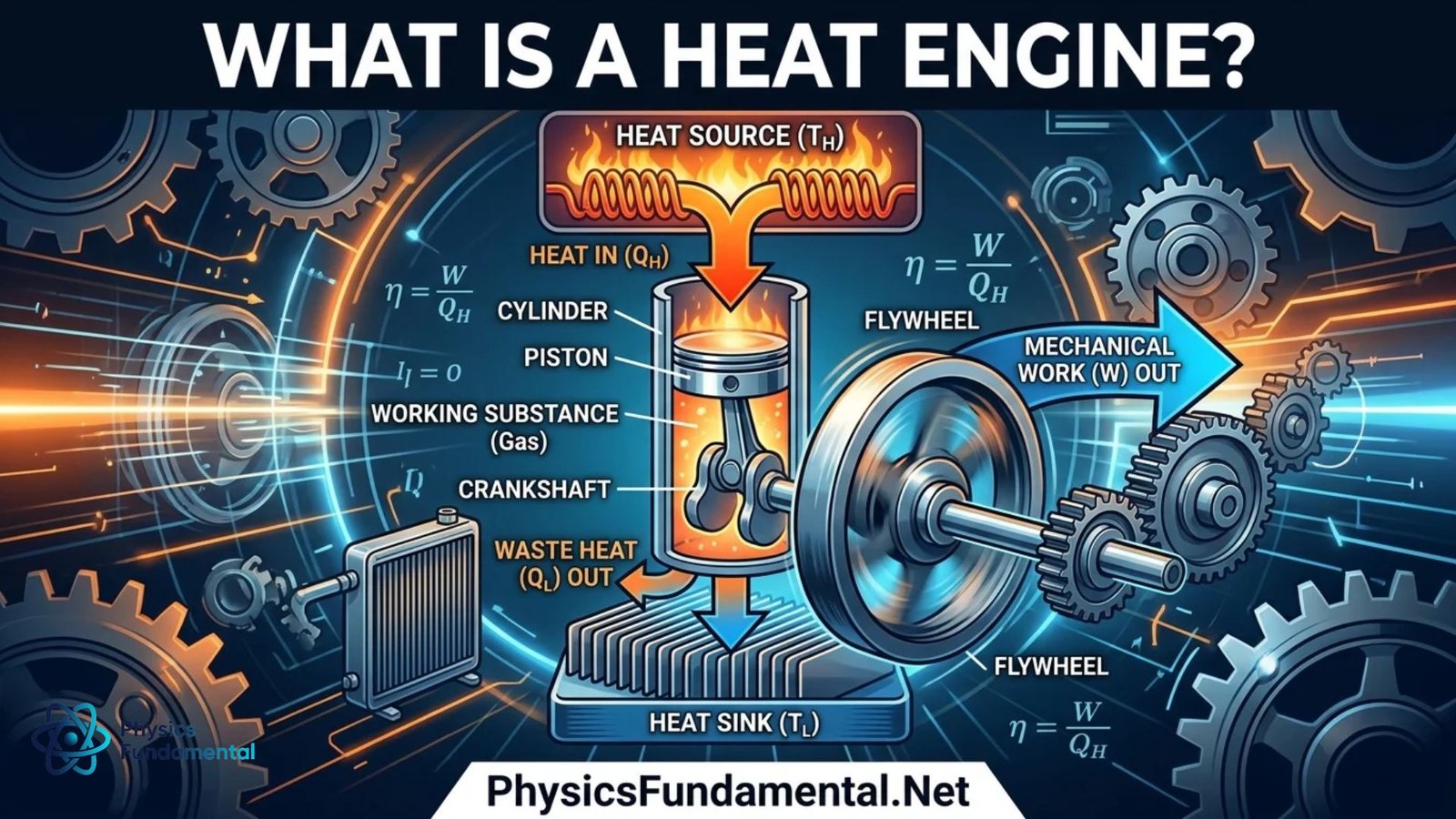

What Is a Heat Engine?
A heat engine is a device that converts thermal energy into mechanical work.
A typical heat engine operates between two temperature reservoirs:
- A hot reservoir provides heat.
- The engine converts part of that energy into work.
- The remaining heat is rejected to a cold reservoir.
If the engine absorbs heat Qₕ from the hot reservoir, produces work W, and releases heat Q𝚌 to the cold reservoir, energy conservation gives:
W = Qₕ − Q𝚌
This means the work produced is equal to the heat absorbed minus the heat rejected.
What Is the Carnot Cycle?
The Carnot cycle is an ideal reversible thermodynamic cycle proposed by French physicist Sadi Carnot.
It describes the maximum possible efficiency of a heat engine operating between two fixed temperatures.
The cycle contains four reversible processes:
- Isothermal expansion
- Adiabatic expansion
- Isothermal compression
- Adiabatic compression
The cycle returns the working substance to its original state after these four processes.
The concept is closely connected to Carnot cycle thermodynamics, which provides the theoretical foundation for understanding the maximum efficiency of heat engines.
The Four Processes of the Carnot Cycle
Each stage of the Carnot cycle has a specific thermodynamic role.
1. Isothermal Expansion
During the first stage, the working gas is in contact with the hot reservoir at temperature Tₕ.
The gas expands while its temperature remains constant.
Because the gas expands, it does work on its surroundings.
Heat is supplied to the gas from the hot reservoir to maintain its constant temperature.
Therefore:
Temperature = constant
Heat enters the system
Gas performs work
2. Adiabatic Expansion
The gas is then thermally insulated from the surroundings.
It continues to expand and perform work, but no heat enters or leaves the system.
Therefore:
Q = 0
Because the gas does work during expansion without receiving heat, its internal energy decreases and its temperature falls.
The gas cools from Tₕ to T𝚌.
3. Isothermal Compression
The gas is now placed in contact with the cold reservoir at temperature T𝚌.
The gas is compressed while its temperature remains constant.
Work is done on the gas.
At the same time, the gas releases heat to the cold reservoir.
Therefore:
Temperature = constant
Heat leaves the system
Work is done on the gas
4. Adiabatic Compression
Finally, the gas is thermally insulated again.
The gas is compressed without heat transfer:
Q = 0
Work is done on the gas, increasing its internal energy and temperature.
The temperature rises from T𝚌 back to Tₕ.
The gas returns to its original state, completing the cycle.
Carnot Cycle Diagram
The four stages can be summarized as:
1 → 2: Isothermal expansion
2 → 3: Adiabatic expansion
3 → 4: Isothermal compression
4 → 1: Adiabatic compression
A pressure-volume (P–V) diagram of the cycle forms a closed loop. The area enclosed by the loop represents the net work done by the engine during one complete cycle.
Carnot Efficiency Formula
The efficiency of a heat engine is defined as:
η = W/Qₕ
Since:
W = Qₕ − Q𝚌
we can write:
η = (Qₕ − Q𝚌)/Qₕ
Therefore:
η = 1 − Q𝚌/Qₕ
For a reversible Carnot engine:
Q𝚌/Qₕ = T𝚌/Tₕ
So the Carnot efficiency becomes:
η₍Carnot₎ = 1 − T𝚌/Tₕ
where:
- η₍Carnot₎ = maximum theoretical efficiency
- Tₕ = absolute temperature of the hot reservoir
- T𝚌 = absolute temperature of the cold reservoir
Temperatures must be measured in kelvin.
Why Does Temperature Have to Be in Kelvin?
The Carnot efficiency equation uses an absolute temperature scale.
For example:
T(K) = T(°C) + 273.15
Suppose the hot reservoir is at 500°C and the cold reservoir is at 100°C.
Convert them first:
Tₕ = 500 + 273.15 = 773.15 K
T𝚌 = 100 + 273.15 = 373.15 K
Using Celsius directly would produce an incorrect efficiency.
Example of Carnot Efficiency
Suppose a theoretical Carnot engine operates between:
Tₕ = 600 K
T𝚌 = 300 K
The efficiency is:
η = 1 − T𝚌/Tₕ
η = 1 − 300/600
η = 1 − 0.5
η = 0.5
Therefore:
η = 50%
This means the maximum theoretical efficiency for an engine operating between these two temperatures is 50%.
It does not mean that every real engine operating between these temperatures will achieve 50%.
Can a Heat Engine Be 100% Efficient?
No heat engine operating between finite temperatures can achieve 100% efficiency.
From the Carnot equation:
η = 1 − T𝚌/Tₕ
For efficiency to equal 100%:
η = 1
Therefore:
T𝚌/Tₕ = 0
This would require the cold reservoir to be at absolute zero:
T𝚌 = 0 K
Absolute zero cannot be reached through a finite sequence of thermodynamic processes.
Therefore, a practical heat engine cannot achieve 100% efficiency.
You May Like to Read: Kinetic Theory of Gases: Powerful Pressure & Molecular Motion Guide 2026
How Can Carnot Efficiency Be Increased?
The Carnot equation is:
η = 1 − T𝚌/Tₕ
This shows two theoretical ways to increase efficiency.
Increase the Hot Reservoir Temperature
Increasing Tₕ increases the maximum possible efficiency, assuming the cold-reservoir temperature remains fixed.
Decrease the Cold Reservoir Temperature
Decreasing T𝚌 also increases the theoretical efficiency.
However, practical engineering limitations prevent temperatures from being changed without consequences. Materials, combustion chemistry, heat-transfer limitations, safety, and other factors constrain real systems.
Carnot Engine vs Real Heat Engine
The Carnot engine is an ideal model.
A real engine cannot perfectly reproduce the reversible processes of the Carnot cycle.
Real engines experience effects such as:
- Friction
- Heat loss
- Turbulence
- Finite temperature differences
- Irreversible expansion and compression
- Incomplete combustion
- Mechanical losses
- Heat transfer limitations
As a result:
Real engine efficiency < Carnot efficiency
for an engine operating between the same hot and cold reservoir temperatures.
The Carnot efficiency is therefore a theoretical upper limit rather than a typical practical efficiency.
What Makes the Carnot Cycle Reversible?
A reversible process is an ideal process that can be reversed without producing a net change in the system and surroundings.
The Carnot cycle assumes:
- No friction
- Infinitely slow processes
- Perfect thermal insulation during adiabatic stages
- Heat transfer across infinitesimally small temperature differences
- No other sources of irreversibility
These assumptions make the Carnot cycle impossible to reproduce perfectly in practice.
However, they allow it to establish a fundamental efficiency limit.
Carnot Cycle and the Second Law of Thermodynamics
The Carnot cycle is closely related to the second law of thermodynamics.
The second law tells us that heat naturally flows from hotter regions toward colder regions and that there are fundamental restrictions on converting heat into work.
A heat engine cannot take heat from a single reservoir and convert all of it into work while operating in a cycle.
Some heat must be rejected to a lower-temperature reservoir.
The Carnot cycle demonstrates this limitation mathematically.
Entropy and the Carnot Cycle
Entropy provides another way to understand the Carnot cycle.
For a reversible process:
dS = dQᵣₑᵥ/T
During the isothermal expansion at the hot temperature:
ΔSₕ = Qₕ/Tₕ
During the isothermal compression at the cold temperature:
ΔS𝚌 = −Q𝚌/T𝚌
For a complete reversible cycle:
ΔSₜₒₜₐₗ = 0
Therefore:
Qₕ/Tₕ = Q𝚌/T𝚌
which gives:
Q𝚌/Qₕ = T𝚌/Tₕ
Substituting this into the efficiency equation produces:
η = 1 − T𝚌/Tₕ
This shows how entropy and Carnot efficiency are directly connected.
Carnot Cycle on a P–V Diagram
The Carnot cycle can be represented on a pressure-volume diagram.
The horizontal axis represents volume, while the vertical axis represents pressure.
The cycle consists of two isotherms and two adiabatic curves.
The enclosed area represents the net work done by the engine during one complete cycle.
A clockwise cycle represents a heat engine because the system produces net positive work.
A reversed Carnot cycle can instead represent an idealized refrigerator or heat pump.
Carnot Cycle and Refrigerators
The Carnot cycle is not limited to heat engines.
When operated in reverse, the cycle can describe an ideal reversible refrigerator or heat pump.
Instead of producing work from heat, external work is supplied to move heat from a colder reservoir to a hotter reservoir.
This provides an ideal theoretical benchmark for refrigeration systems.
Why the Carnot Cycle Is Important
The Carnot cycle is important because it establishes a universal efficiency limit.
Its efficiency depends only on:
Tₕ and T𝚌
It does not depend on:
- The type of working gas
- The engine’s physical size
- The specific construction of the engine
- The amount of gas used
This makes the Carnot cycle a powerful theoretical tool for comparing heat engines.
Common Applications of Carnot Principles
Carnot’s ideas are relevant to many areas of thermodynamics and engineering.
Internal Combustion Engines
Petrol and diesel engines operate through real thermodynamic cycles. Their performance can be compared with idealized thermodynamic limits.
Steam Turbines
Power plants use heat to produce mechanical work and ultimately electricity. Thermodynamic cycles help engineers analyze their efficiency.
Gas Turbines
Gas turbine engines convert thermal energy into mechanical work. Their efficiency is influenced by operating temperatures and irreversible losses.
Refrigeration
The reversed Carnot cycle provides an ideal limit for refrigerator and heat-pump performance.
Power Plants
Thermodynamic efficiency is a major factor in designing systems that convert fuel or other energy sources into electricity.
Common Misconceptions About the Carnot Cycle
The Carnot Cycle Is a Real Engine Cycle
The Carnot cycle is an idealized reversible cycle. Real engines cannot operate perfectly according to it.
Carnot Efficiency Is the Efficiency of Every Engine
It is not. Carnot efficiency is the maximum theoretical efficiency for an engine operating between specified reservoir temperatures.
Higher Temperature Automatically Means 100% Efficiency
Increasing the hot-reservoir temperature can increase the theoretical limit, but it does not make 100% efficiency possible.
Heat Is Completely Converted Into Work
No. A heat engine must reject some heat to a colder reservoir.
Celsius Can Be Used in the Efficiency Formula
No. The Carnot efficiency equation requires absolute temperatures in kelvin.
Quick Formula Summary
Heat engine work:
W = Qₕ − Q𝚌
Heat engine efficiency:
η = W/Qₕ
Therefore:
η = 1 − Q𝚌/Qₕ
For a reversible Carnot engine:
Q𝚌/Qₕ = T𝚌/Tₕ
So:
η₍Carnot₎ = 1 − T𝚌/Tₕ
The temperatures must be measured in kelvin.
Frequently Asked Questions
What is the Carnot cycle?
The Carnot cycle is an ideal reversible thermodynamic cycle consisting of two isothermal and two adiabatic processes.
What is the maximum efficiency of a heat engine?
For an ideal reversible engine, the maximum efficiency is the Carnot efficiency: η = 1 − T𝚌/Tₕ.
Can a Carnot engine be 100% efficient?
No. A heat engine cannot reach 100% efficiency because it must reject some heat to a colder reservoir.
Why are temperatures measured in kelvin?
The Carnot efficiency formula uses absolute temperature, so temperatures must be expressed in kelvin.
What are the four processes of the Carnot cycle?
They are isothermal expansion, adiabatic expansion, isothermal compression, and adiabatic compression.
Conclusion
The Carnot cycle provides a powerful theoretical explanation of how efficient a heat engine can be. It shows that the maximum possible efficiency depends only on the temperatures of the hot and cold reservoirs.
The key equation is:
η₍Carnot₎ = 1 − T𝚌/Tₕ
This equation demonstrates why no practical heat engine can achieve 100% efficiency. Real engines always experience irreversibilities and therefore operate below the Carnot limit.
By understanding the four processes of the Carnot cycle, the relationship between heat and work, and the role of absolute temperature, you can understand one of the most important limits in thermodynamics.
